B&M Automatic Shifter, Pro Gate 80902

B&M Automatic Shifter, Pro Gate 80902
B&M Automatic Shifter, Pro Gate 80902B&M Automatic Shifter, Pro Gate 80902B&M Automatic Shifter, Pro Gate 80902B&M Automatic Shifter, Pro Gate 80902
$444.99 ea
NEWARRIVING SOONEstimated Ship Date 01/13/2025 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/26/2024
Model: 3998504
STANDARD
DELIVERY
STORE PICKUP
[More Info]

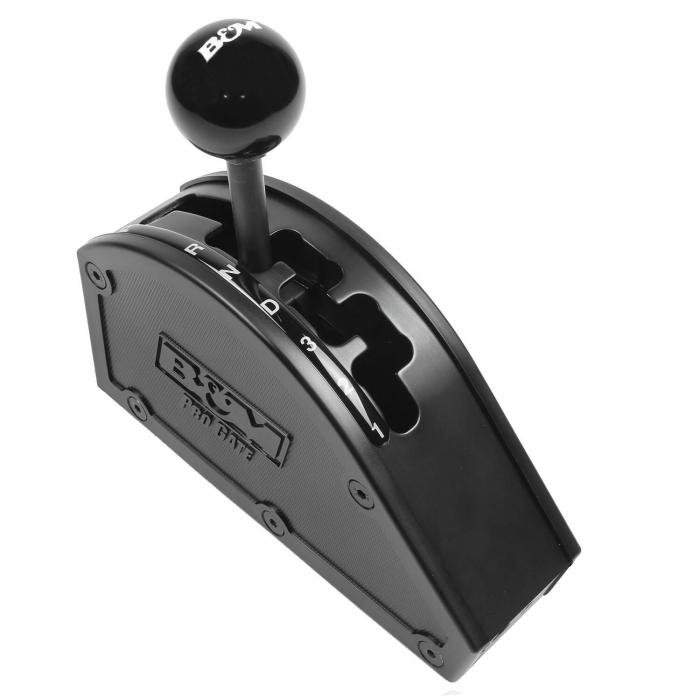

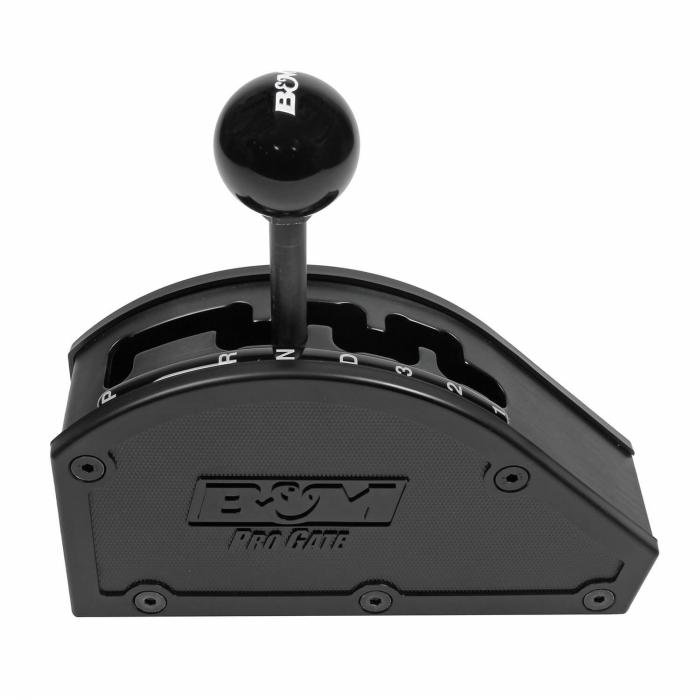

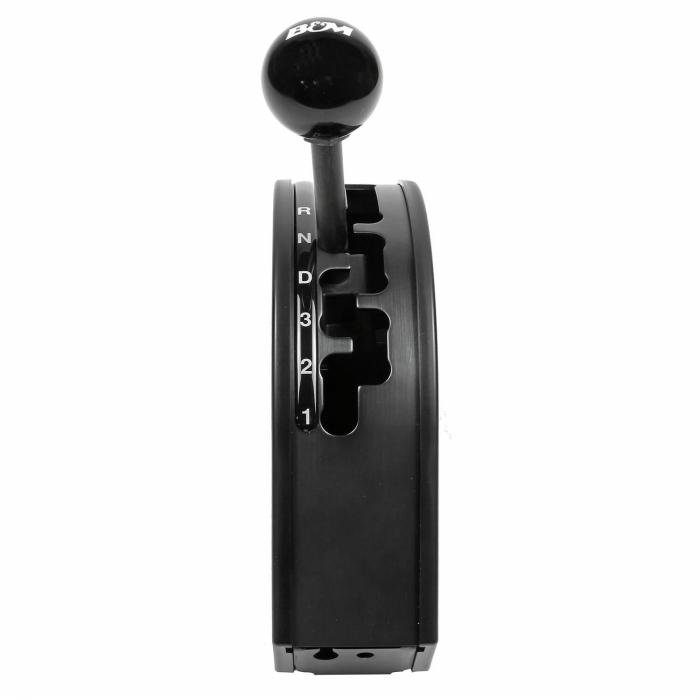

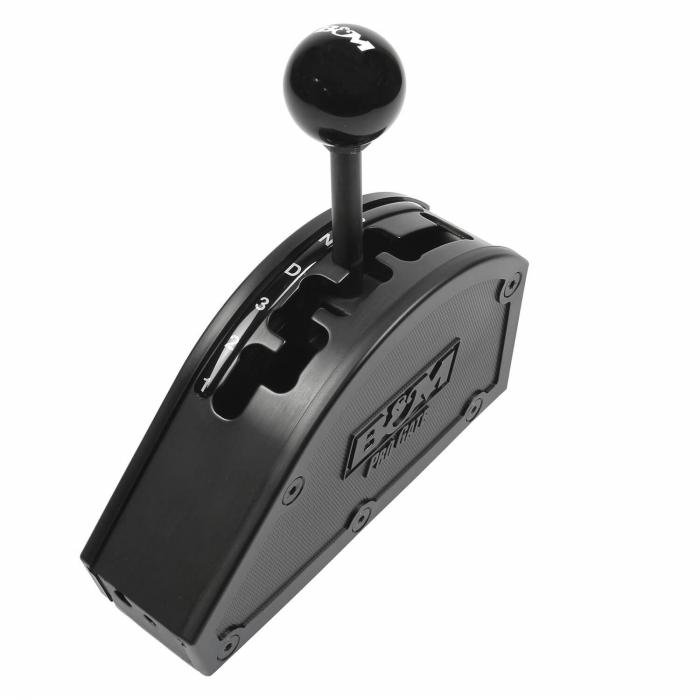

The B&M Pro Gate shifter is an externally gated race shifter for GM 4-speed automatic transmissions. The compact and lightweight design features a 10-gauge black oxide-coated 304 stainless steel base with a heavy-duty 303 stainless steel shift pin for longevity and bullet-proof performance. The 1018 steel shift stick includes a black B&M logo shift knob for shifting duties while the external gate plate is constructed from black oxide-coated 11-gauge 304 stainless steel for durability. The 4-speed gated forward shift pattern features a staggered shift pattern with positive stops between each gear for easy and precise shifts. Other features include thick injection-molded nylon side covers featuring a knurled texture with the B&M Pro Gate logo on both sides. The covers are removable for access to the virtually maintenance-free shifter sub-assembly and will not gum up with dirt affecting shift performance, which is ideal for Off-Road racing. The rear exit cable design includes a black 5-ft Super Duty race shifter cable along with a cable bracket, shift lever, and all necessary hardware for a straightforward installation. Includes Lifetime Limited Warranty. Overall Dimensions - 9.1L x 2.6W x 9.5H Note: This shifter is not recommended as-is for street use, as it does not include neutral safety or backup light switches. Add B&M 80850 Pro Gate Switch Kit for street use. Fits all GM 4-speed Automatic Transmissions - may require B&M #75499 for 4L60E, 4L65E, 4L70E, 4L75E, 4L80E, and 4L85E Automatic Transmissions with PRNDL Switch.
Features:
  • Heavy 10-gauge 304 Stainless Steel Shifter Base Provides Ultimate Strength and Stability
  • High Impact Injection Molded Nylon Side Covers are Built for Abuse
  • Includes 5-ft Super Duty Race Shift Cable
  • 304 Stainless Steel External Gate Plate Provides Durability and Short Positive Gated Shifts
  • Rugged Construction and Durable Black Oxide Coating Provide Low Maintenance
  • Lifetime Limited Warranty
  • Rear Exit Cable Model
  • Forward Shift Pattern
Fits all GM 4-speed Automatic Transmissions - may require B&M #75499 for 4L60E, 4L65E, 4L70E, 4L75E, 4L80E, and 4L85E Automatic Transmissions with PRNDL Switch
Installation Notes:
Fits all GM 4-speed Automatic Transmissions - may require B&M #75499 for 4L60E, 4L65E, 4L70E, 4L75E, 4L80E, and 4L85E Automatic Transmissions with PRNDL Switch
About B&M Racing

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.

Downloads:

Download Name File Size
bm_warranty.pdf87.47KB
80902_instructions.pdf2.18MB

Videos:

Specifications:

Application Universal
Automotive Item Grade High Performance
Backup Light Switch No
Color Black
Emission Code 5
Finish Smooth, Textured
Housing Mount Hole Quantity 4
Item Grade High Performance
Material 304SS, Aluminum, Nylon
Overall Dimension 9.10Lx 9.50H x 2.60W
Package Contents Shifter Assembly, Cable, Hardware and Instructions
Part Type Automatic Transmission Shift Lever Kit
Product Type Shifter
Proposition 65 www.P65Warnings.ca.gov
Reverse Lockout/Safety Lock? No
Rod Diameter (in) 0.5
Rod Length (in) 4.75
Shifter Knob Color Black
Shifter Knob Included? Yes
Shifter Knob Material PBT/ABS
Thread Size 1/2-20
Transmission Type GM 4-Speed Automatics
With Overdrive Switch? No
