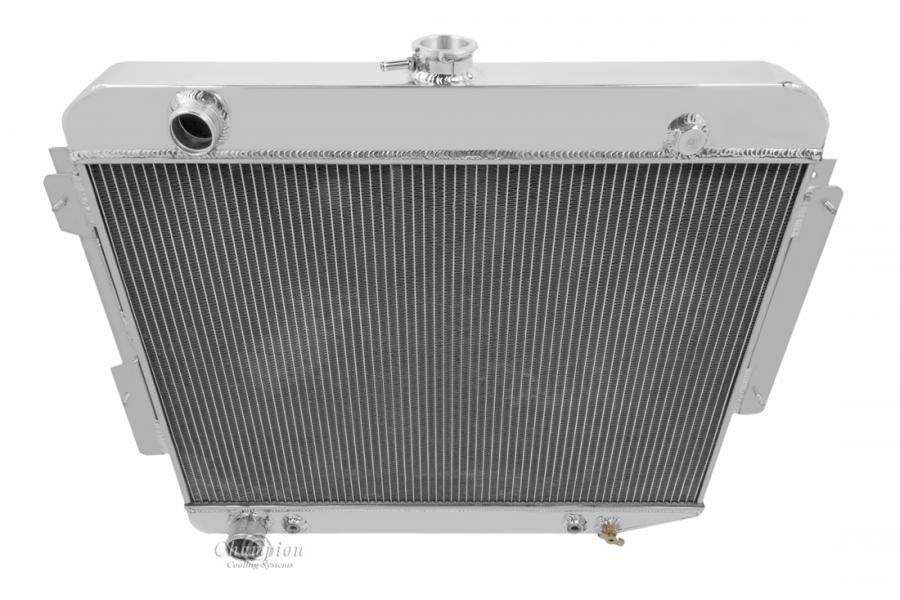

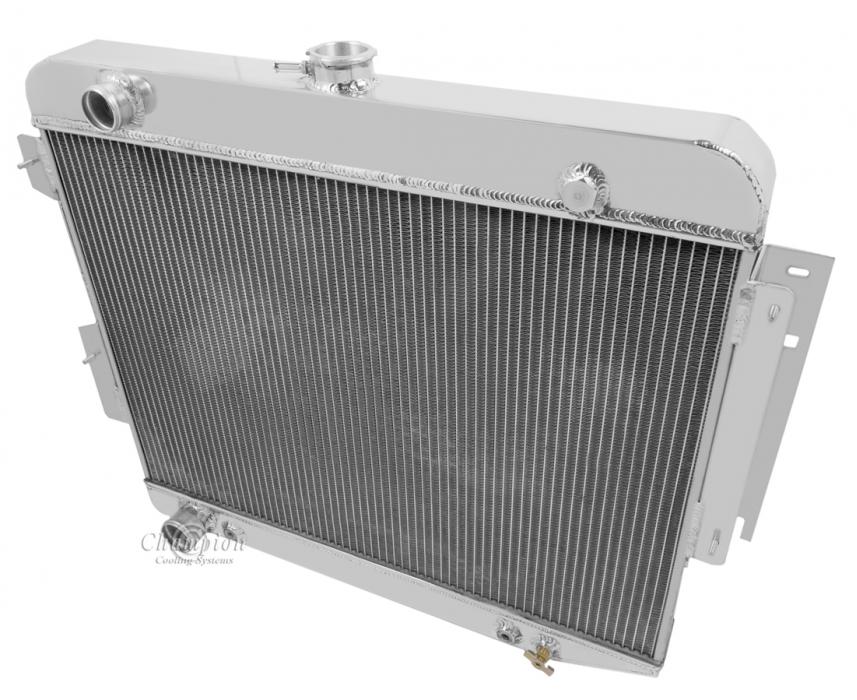

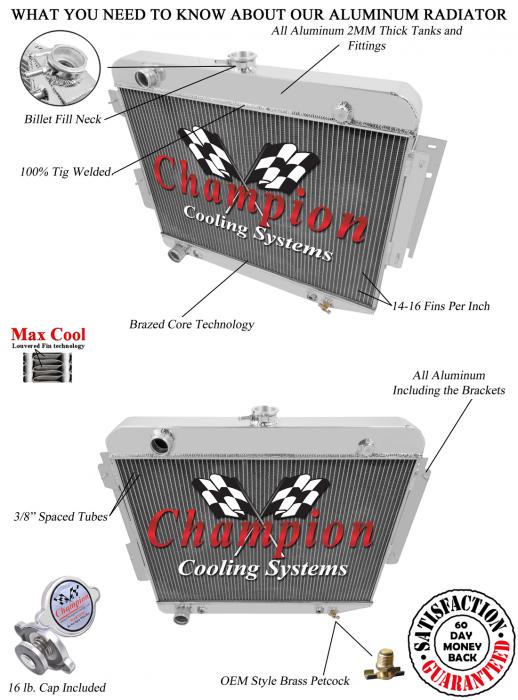

Our American Eagle series all aluminum radiators feature cores constructed using 2 rows of 1” tubes and are designed to keep your high performance engine cool. They are designed with 2 rows of 1” tubes in a 2 1/4” thick brazed aluminum core tig-welded to aluminum tanks, with approximately 14-16 louvered fins per inch, a brass petcock, and all are designed with aircraft grade aluminum. The aluminum allows for the improved design of larger tubes to outperform a copper-brass radiator of similar dimensions. We would recommend the use of these radiators for vehicle applications that have an engine producing 800 horsepower or less.
Champion Cooling brought the American Eagle series of radiators to market with the goal of not only making a product our customers would be proud to show off, but also designed to the highest standard while still making it very affordable. You could easily spend between $450 and $950 on a comparable two-row radiator from one of our competitors.
When we sat down and thought about what our customer was actually purchasing, we discovered it wasn’t simply parts for a classic car. We discovered they were purchasing nostalgia because their classic car brought back great memories from their past. Knowing this, we made it our mission to make sure our products were manufactured with the highest level of quality so our customers would be proud to install them in their vehicles and show them off to their friends. We also set out to make sure we could provide our products at a very affordable price allowing more people to enjoy the nostalgia of restoring a classic car. In addition to making sure our products are of the highest standard we give our best effort to serve our customers and treat them exactly how we would want to be treated.
| Make | Model | Submodel | Years | Fitment Notes |
| Dodge | Charger | 500 | 1969 | Designed for Small Block V8. For Big Block V8 See Part #1640. |
| Dodge | Charger | Base | 1966 - 1969 | Designed for Small Block V8. For Big Block V8 See Part #1640. |
| Dodge | Charger | R/T | 1967 - 1969 | Designed for Small Block V8. For Big Block V8 See Part #1640. |
| Dodge | Charger | SE | 1969 | Designed for Small Block V8. For Big Block V8 See Part #1640. |

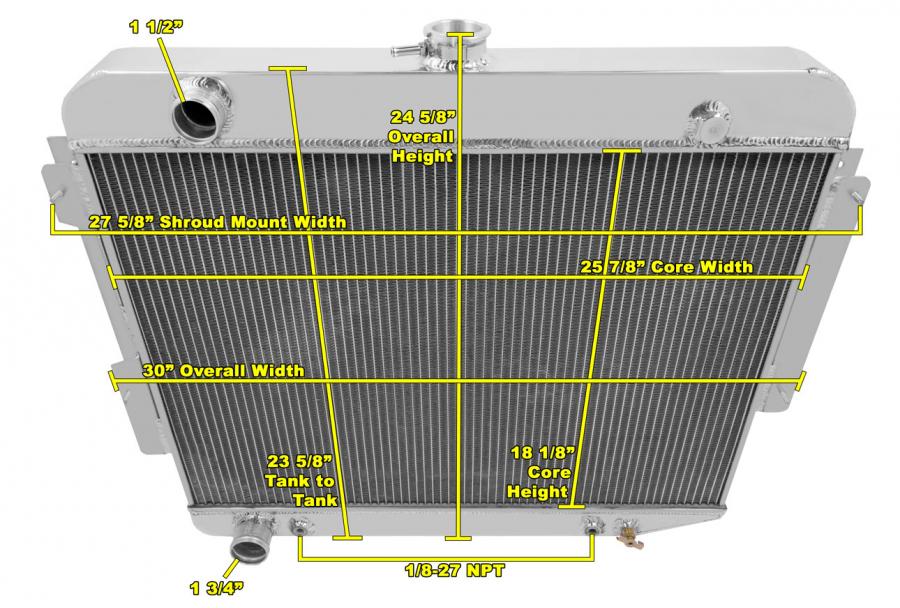

| Core Height | 18.125 IN |
| Core Material | Aluminum |
| Core Row Quantity | 2 Row with 1" Tubes |
| Core Width | 25.875 IN |
| Down Flow Or Cross Flow Type | Down Flow |
| Filler Neck Attached | Yes |
| Inlet Diameter | 1.5 IN |
| Inlet Location | Driver |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Bracket |
| Outlet Diameter | 1.75 IN |
| Outlet Location | Driver |
| Overall Height | 24.625 IN |
| Overall Width | 30 IN |
| Part Type | Radiator |
| Tank Material | Aluminum |
| Transmission Oil Cooler Fitting Type | 1/8-27NPT IN |
| Warranty | Limited Lifetime (Lifetime) |
