Earl's Billet Remote Oil Filter Mount 2188ERL

Earl's Billet Remote Oil Filter Mount 2188ERL
Earl's Billet Remote Oil Filter Mount 2188ERLEarl's Billet Remote Oil Filter Mount 2188ERLEarl's Billet Remote Oil Filter Mount 2188ERLEarl's Billet Remote Oil Filter Mount 2188ERLEarl's Billet Remote Oil Filter Mount 2188ERL
$159.99 ea
NEWARRIVING SOONEstimated Ship Date 12/18/2024 (If Ordered Today)76 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/01/2024
Model: 4000445
STANDARD
DELIVERY
STORE PICKUP
[More Info]

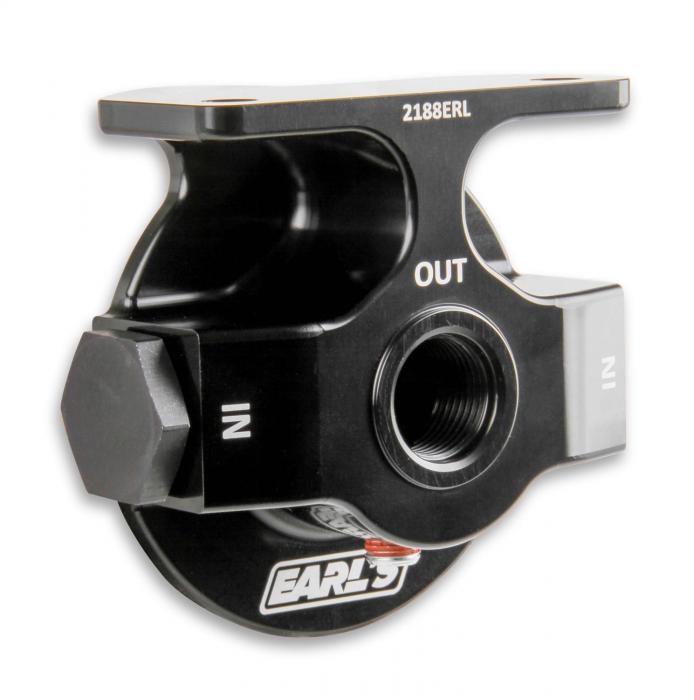

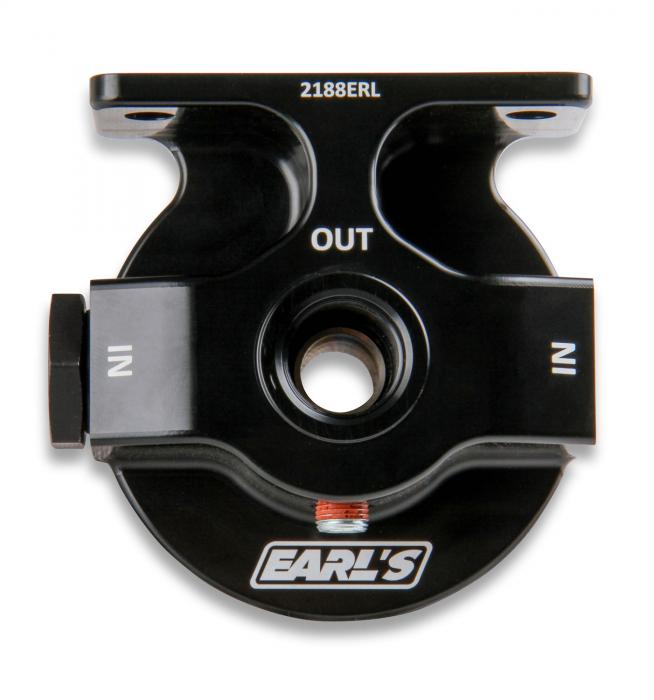

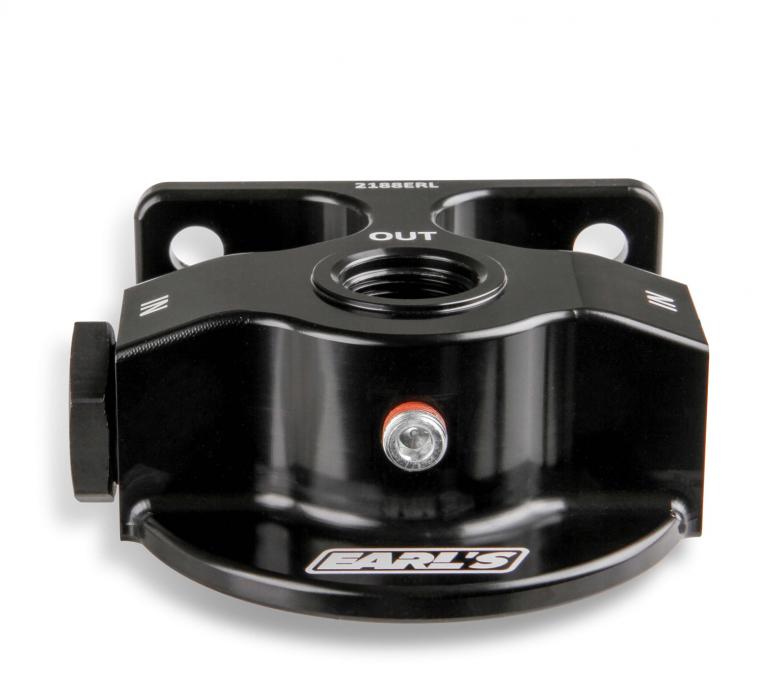

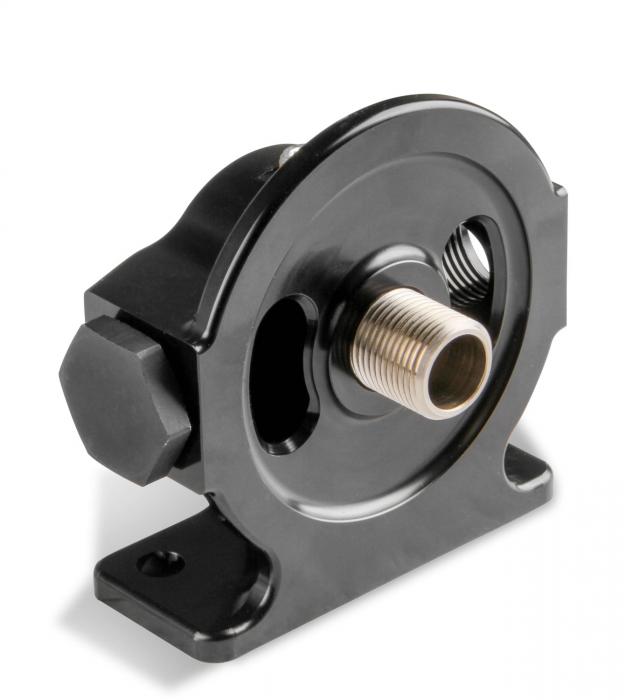

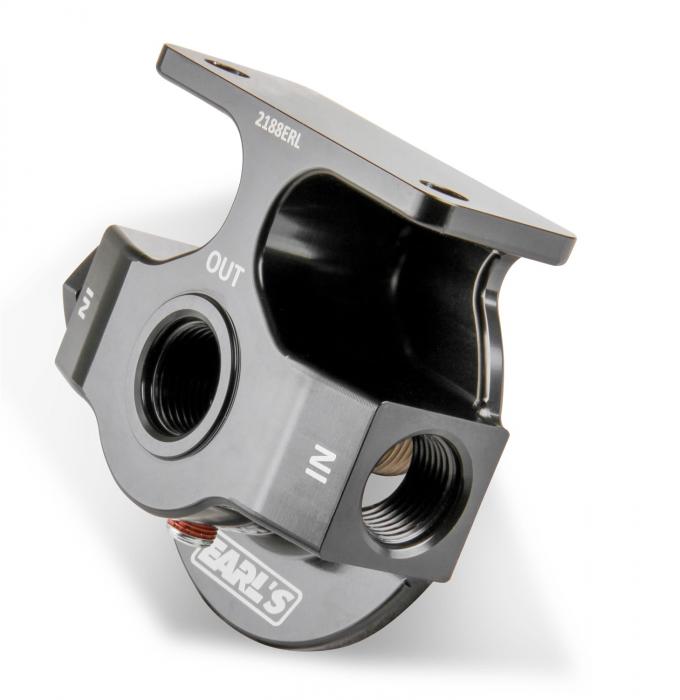

Move your oil filter to an easy to reach location with Earl's new Billet Remote Oil Filter Mount. This new filter mount features 10 AN O-ring ports, 1/8" NPT port, and dual inlets w/ top outlet for easy plumbing from either side. The kit includes the filter mount, plugs, and hardware. Lightweight aluminum with black anodized finish.
Features:
  • Billet Aluminum
  • Fits 13/16"-16 Oil Filter (fits Fram PH5 or HP4 Oil Filters)
  • (3) 10 AN O-Ring Ports
  • 2-Bolt Mounting
  • Inlet Ports on Both Sides for Easy Routing of Hoses
  • Outlet Port on the Top
  • 1/8” NPT Port
  • Black Anodized

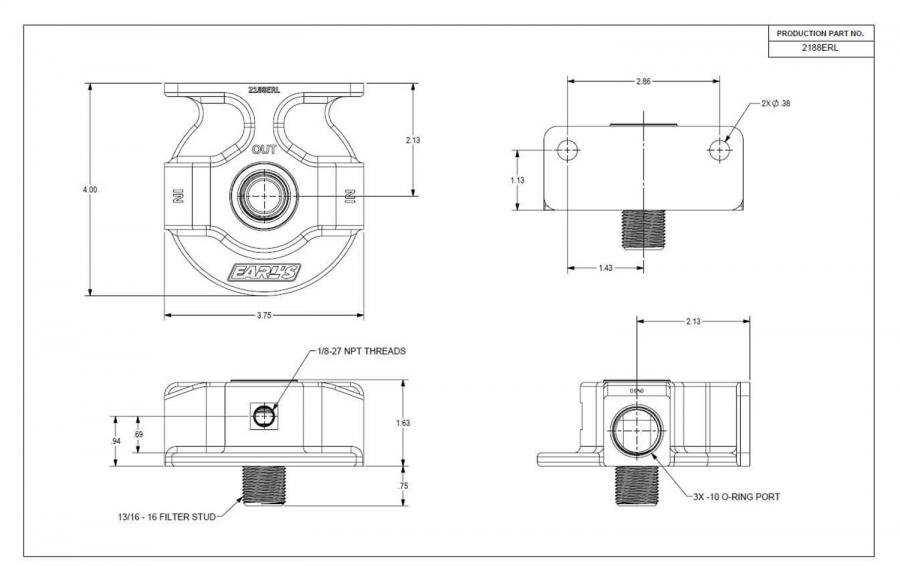

  • Dimensions: 3.750" Wide x 4.000" Long x 1.630" Tall
  • Bolt Spacing: 2-Bolt w/ 2.860" c/l to c/l
This Oil Filter Mount is Designed for Use w/ Fram PH5 or HP4 Oil Filter or Equivalent.
Installation Notes:
This Oil Filter Mount is Designed for Use w/ Fram PH5 or HP4 Oil Filter or Equivalent.

Downloads:

Download Name File Size
199r10647rev1.pdf628.85KB

Videos:

Specifications:

Center Stud Size 13/16-16
Emission Code 5
Filter Type Fram PH5 or HP4 or Equivalent
Finish Black Anodized
Height 1.630"
Length 4.000"
Material Billet Aluminum
Mount Hole Diameter 3/8"
Mounting Bolt Pattern 2.860"
O-Ring Diameter 3.185"
O-Ring Diameter 3.185"
Part Type Engine Oil Filter Remote Mounting Kit
Port Size 7/8-14 Female (-10 O-Ring Boss)
Product Type Oil Filter Mounts
Proposition 65 www.P65Warnings.ca.gov
Width 3.750"
