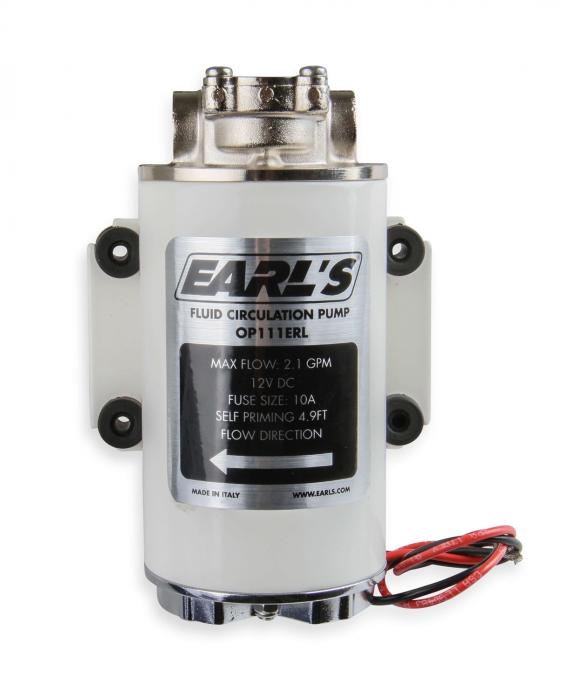

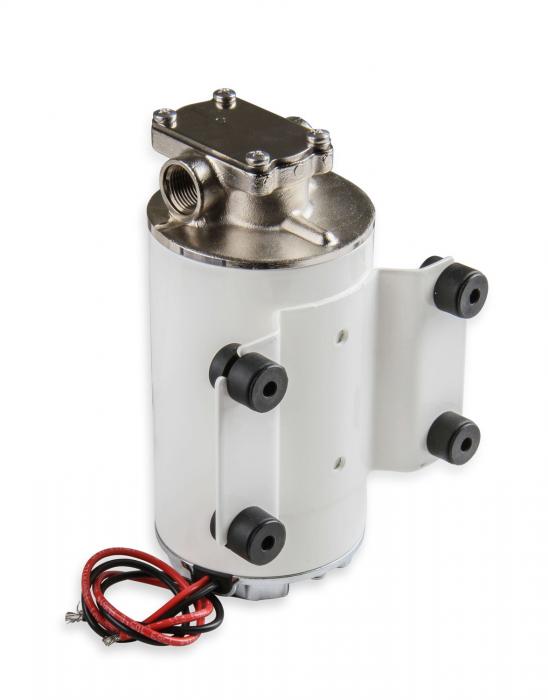

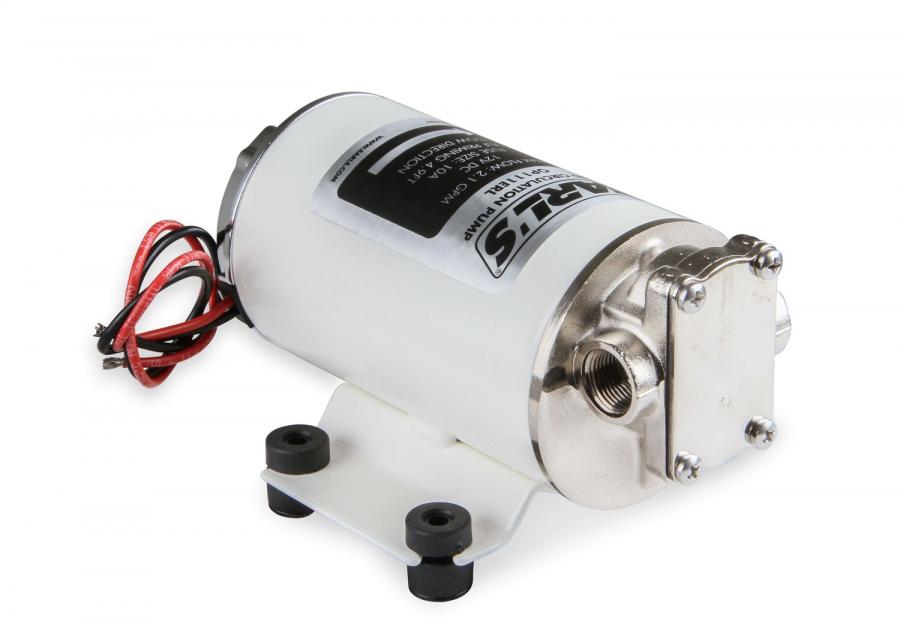

Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends.
Features:
- Electric Oil Pump
- Amp Draw: 10 Amps
- Flow Rate: Up to 2.1 GPM (7.9 LPM)
- Pressure: 72.5 PSI (5 Bar) Max
- Maximum Oil Weight: 90W Gear Oil
- Weight 5.5 lb (2.5 kg)
- Voltage: 12-Volt DC
- Brass Housing w/ Nickel Plated Finish
- Temperature Range: 14 to 160° F (-10 to 71° C) Continuous Duty; 265° (130° C) Max -Intermittent Use
- Overall Dimensions: 6-1/2” Tall x 4-5/8” Wide x 3-3/4 Deep
- Mounting Bolt Pattern: 4-Bolt w/ 2-1/4” Tall x 3-3/4” Wide
- Rubber Vibration Isolators on Each Mount
- Ideal for Cooling Manual Transmission or Differential Using External Oil Cooler

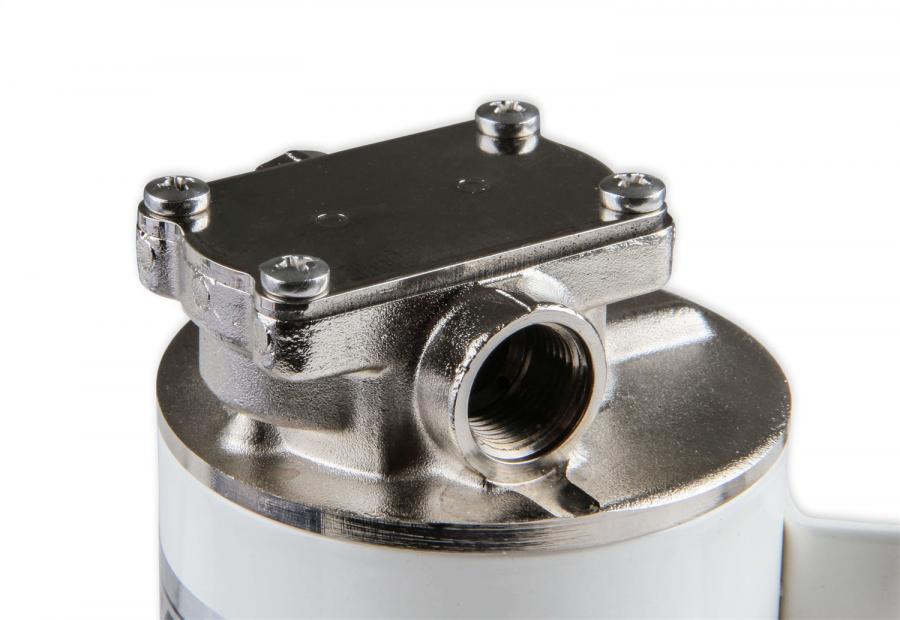

- Inlet & Outlet on Pump: 3/8 BSPP (British Standard Pipe Parallel) straight thread

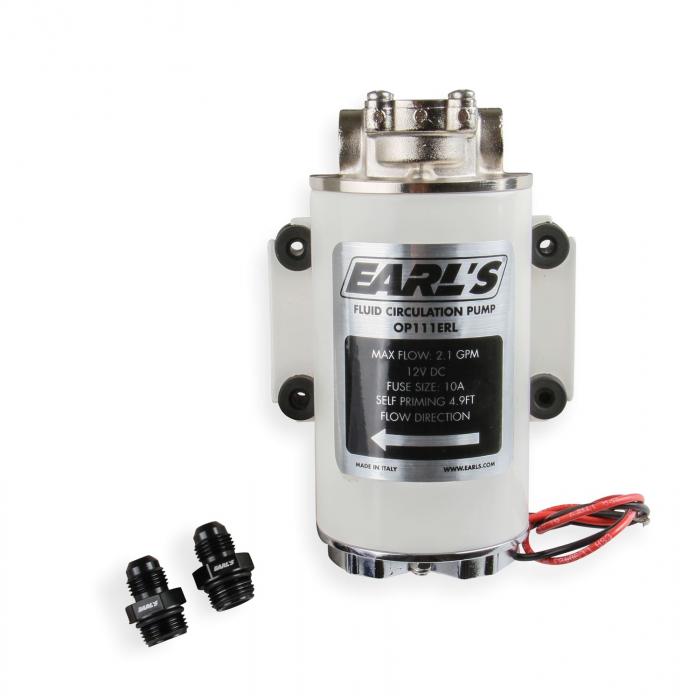

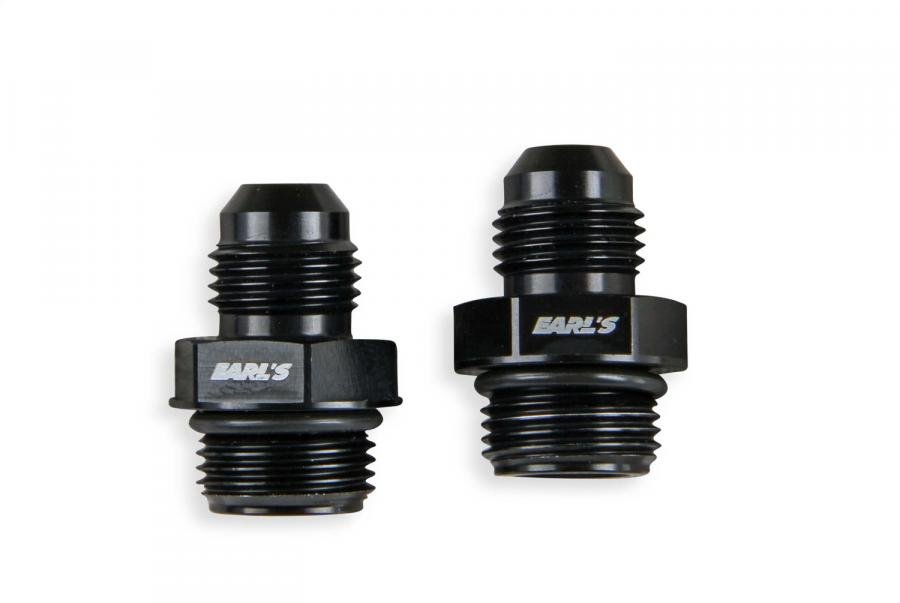

- Includes (2) -6 AN Male to 3/8 BSPP Adapter Fittings
- Self-Priming – Up to 4 Ft. of Vertical Height
- Seal Material: FKM Rubber
- Use w/ Relay & Fuse (available separately)
Allow oil to warm up before turning on pump, or wire with temperature switch.
Installation Notes:
Allow oil to warm up before turning on pump, or wire with temperature switch.
