Download Name | File Size |
earls_guide.pdf | 479.44KB |
Carbon Lined | No |
Compatible Hose Ends | Speed-Seal |
Emission Code | 5 |
Fluid Type | Pump Gas, Diesel, Automatic Transmission Fluid, Coolant, Oil, Race Gas, Bio-Fuels, E85, Methanol/Alcohol, Brake Fluid |
Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
Fluid Type Rating - Bio-Fuels | 5 out of 5 Rating |
Fluid Type Rating - Brake Fluid | 5 out of 5 Rating |
Fluid Type Rating - Coolant | 5 out of 5 Rating |
Fluid Type Rating - Diesel | 5 out of 5 Rating |
Fluid Type Rating - E85 | 5 out of 5 Rating |
Fluid Type Rating - Methanol/Alcohol | 5 out of 5 Rating |
Fluid Type Rating - Oil | 5 out of 5 Rating |
Fluid Type Rating - Power Steering Fluid | 5 out of 5 Rating |
Fluid Type Rating - Pump Gas | 5 out of 5 Rating |
Fluid Type Rating - Race Gas | 5 out of 5 Rating |
Fluid Type Rating - Vacuum | 1 out of 5 Rating |
Hose End Finish | Electroless Nickel Plated |
Hose End Material | Steel |

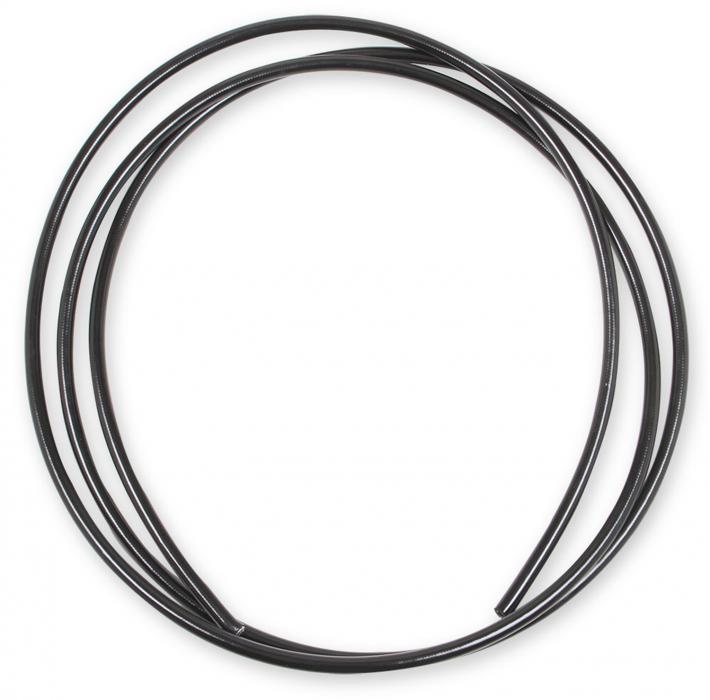

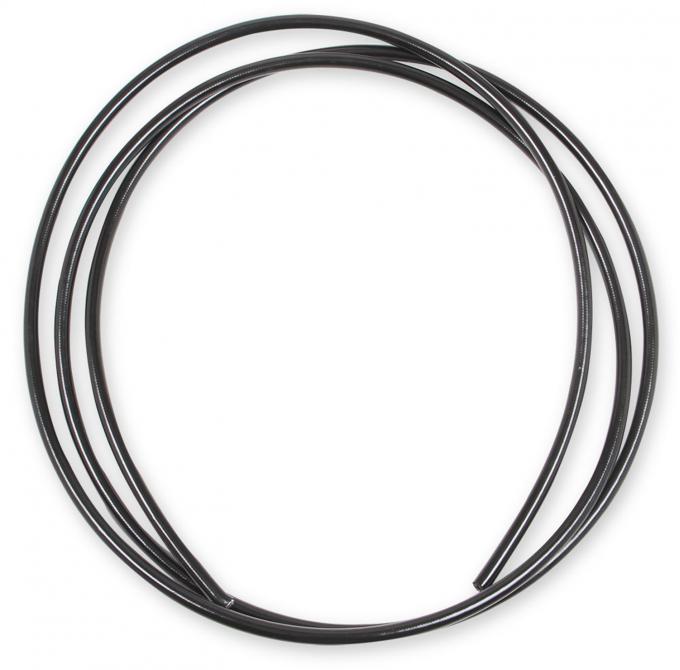

Hose Family | Speed-Flex |
Hose Length | 33 Feet |
Hose Outer Material | PVC Black Coated Stainless |
Hose Size | 3 AN |
Inside Diameter | .120"-.143" |
Max Pressure | 2000 psi |
Max Working PSI | 2000 PSI |
Min. Bend Radius | 1.5" |
Outside Diameter | .284"-.300" |
Part Type | Fuel Hose |
Product Type | Hose |
Proposition 65 | www.P65Warnings.ca.gov |
PTFE Wall Thickness | .040" |
Submersible in Fuel | No |
Temperature Range | -65° to 450° F |
