Looking for a plug and play kit for your GM LS engine? The HP ECU allows you to accurately control the fuel and ignition of your engine plus much more! Got a stock LS engine? Simply download a base map and you're on your way. Got a turbocharged, nitrous fed LS engine on water/meth? This HP EFI kit can control that too! Stop re-flashing your factory ECU every time you make a performance modification. Get Holley EFI today!
Features:
- Simple Installation - Plug and Play control of GM LS1/LS6 engines. Just plug the harness into your factory sensors, wire the power and grounds and you are ready to take complete control of your LS engine
- More Functionality - Provides significantly more functionality than OEM or other competitive ECUs (boost control, nitrous control, water/meth injection, plus a host of additional inputs and outputs to control fans, pumps, relays etc.)
- Easy To Use - Laptop programmable ECU includes a variety of base maps that will have you hitting the cruise or track in no time
- Ideal For Everything - including stock 5.3L engine swaps or all out, 3,000+ horsepower race cars that need a simple and powerful ECU and harness solution
- Industry Leading Self Tuning Fuel Strategy - means less time tuning and more time enjoying the power of your LS vehicle

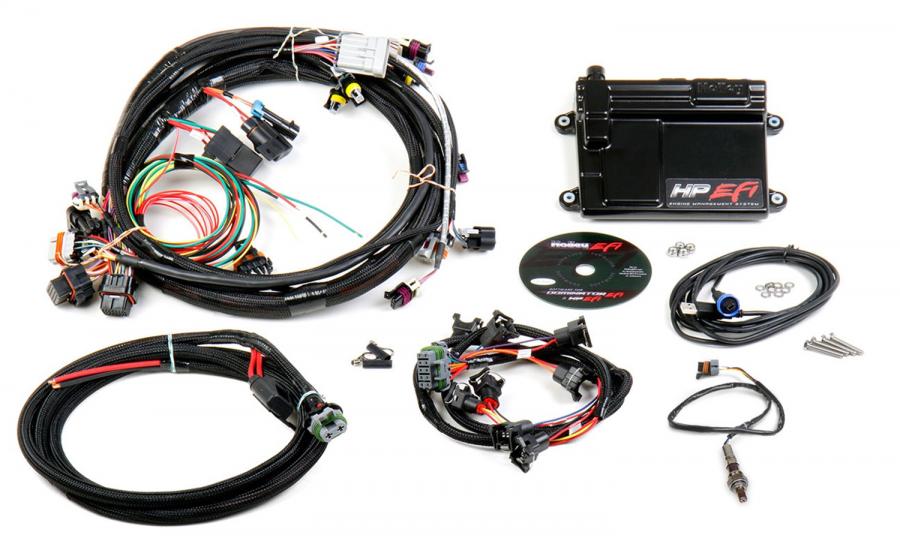

- Kit includes ECU, harness, communication cable, software and and NTK wideband 02 sensor designed to be used with GM LS1/LS6 engines with factory GM coils and a 24 tooth crank sensor
- The NTK Oxygen Sensor is recommended when using leaded or methanol fuels, high exhaust temperatures and forced induction applications or for highest precision feedback
- ECU is fully potted and can be mounted in the engine compartment or interior
- Sealed automotive and marine grade connectors
- 1-5 Bar MAP sensor capability
- Optional plug and play hand-held programmer, 5.7" touchscreen and digital gauges are available for ultimate control and vehicle monitoring
- ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance
- For a full list of advanced features such as boost, nitrous, water/meth, individual cylinder control and more click the document icon under the product image!
ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
Holley HP EFI systems are equipped with 4 programmable inputs and 4 programmable outputs that are ideal for most vehicles with a single power adder. This feature allows the user to configure the system to support a wide range of controls including boost control, progressive nitrous, water/meth injection, speed inputs, fuel pump control, AC inputs, timing retard inputs and various other uses. When selecting an ECU, users need to ensure their planned controls can be run with the 4 inputs and 4 outputs as certain combinations may use more I/Os than are available. If more I/Os are required, users should choose the Dominator VMS.
Software and firmware updates can be downloaded here for free.Installation Notes:
ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
Holley HP EFI systems are equipped with 4 programmable inputs and 4 programmable outputs that are ideal for most vehicles with a single power adder. This feature allows the user to configure the system to support a wide range of controls including boost control, progressive nitrous, water/meth injection, speed inputs, fuel pump control, AC inputs, timing retard inputs and various other uses. When selecting an ECU, users need to ensure their planned controls can be run with the 4 inputs and 4 outputs as certain combinations may use more I/Os than are available. If more I/Os are required, users should choose the Dominator VMS.
Software and firmware updates can be downloaded here for free.
About Holley Performance Products
Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!
