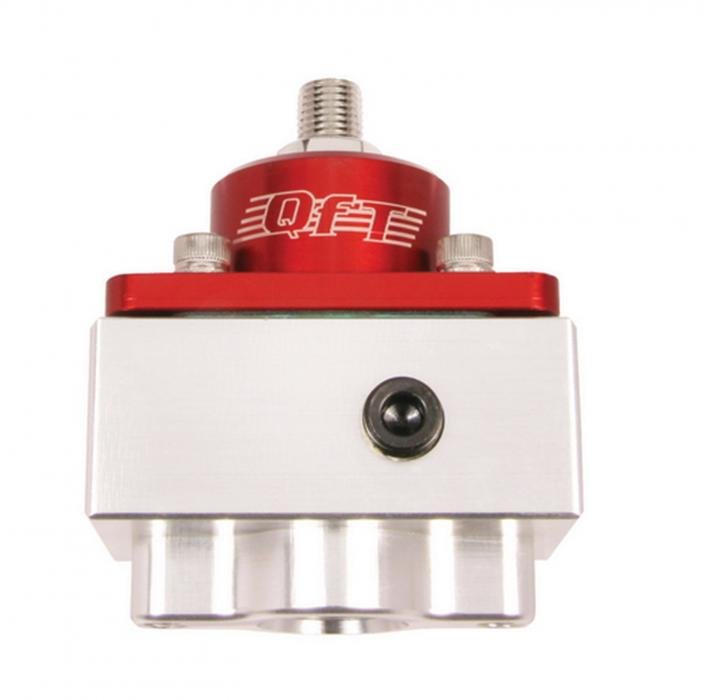

Billet Bypass Regulator - Designed for use with an electric fuel pump where fuel pressure is steadily delivered. By-Pass feature is unrestricted and anodized top has a fitting for boost referenced applications. Comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.
•Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
•.350" (7/20") restriction
•Can be used with gas, alcohol and E85 fuels
•Compatible with QFT™ billet fuel pressure regulator logs
•Includes an 1/8" NPT port for manifold reference
Boost Reference 1-1
Features:
- Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
- .350" (7/20") restriction
- Can be used with gas, alcohol and E85 fuels
- Compatible with QFT™ billet fuel pressure regulator logs
